ANENG AOS03 Digital Oscilloscope Multimeter Signal Generator Waveform Output Handheld Multimeter

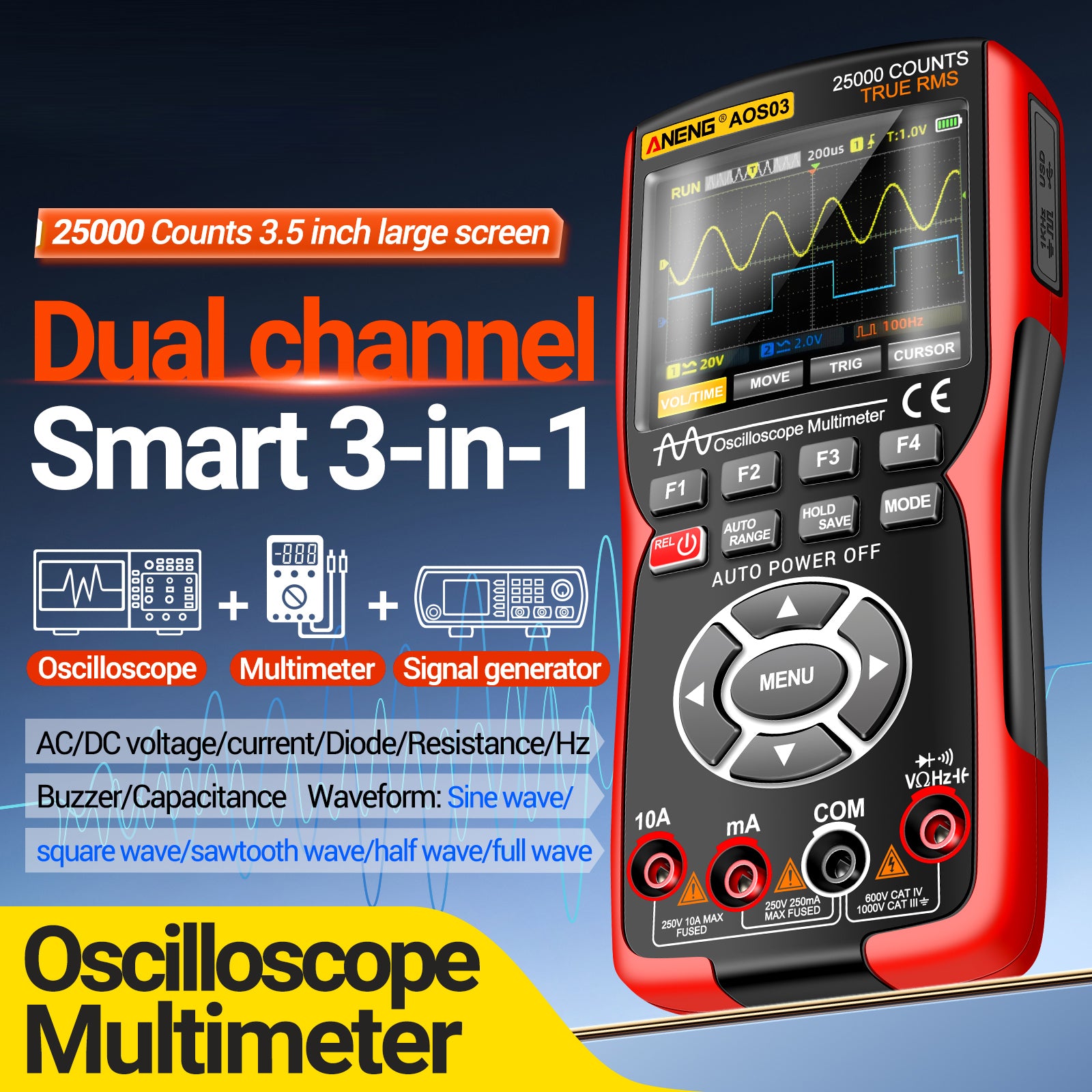

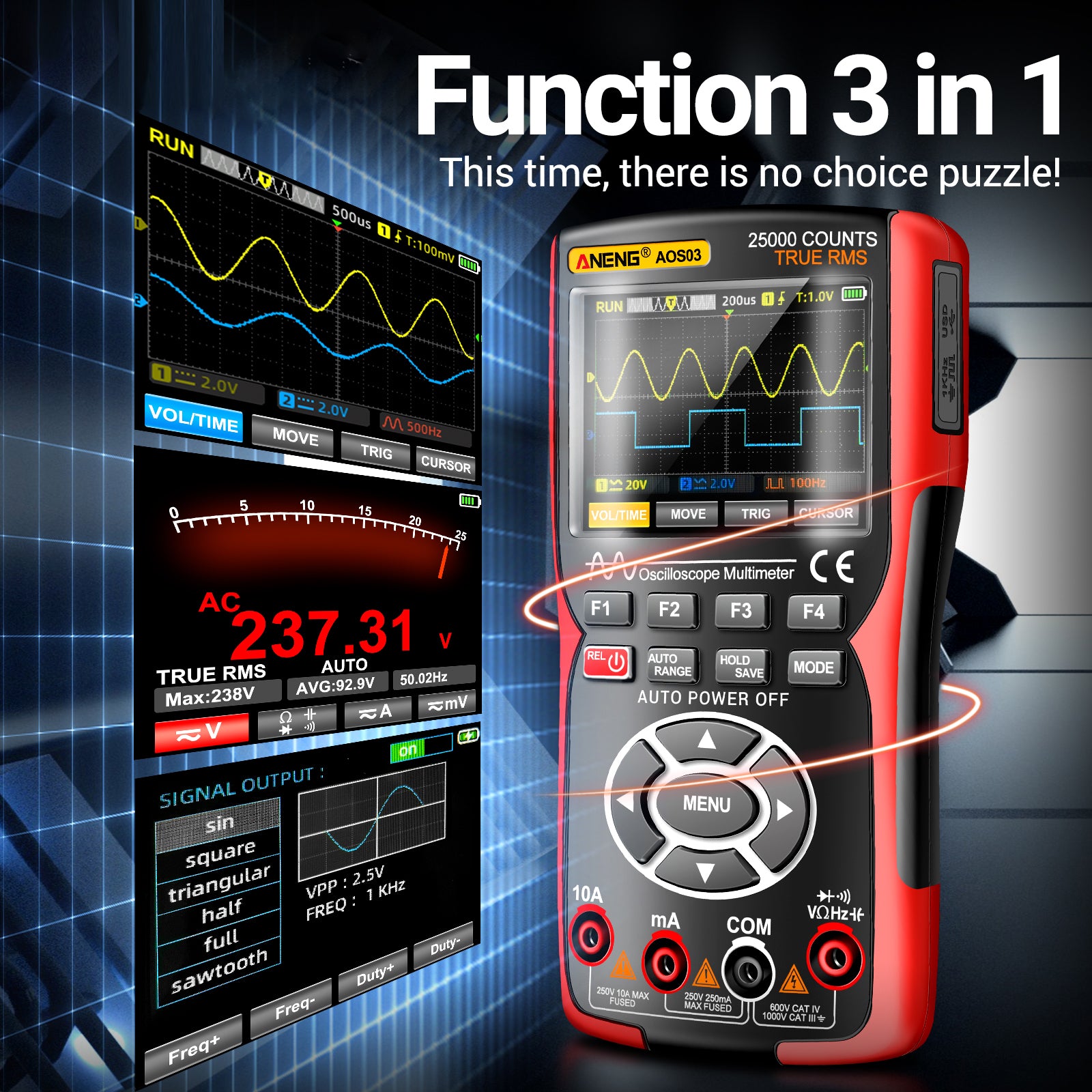

• Two channel 3-in-1 digital oscilloscope multimeter: multimeter + oscilloscope + signal generator function

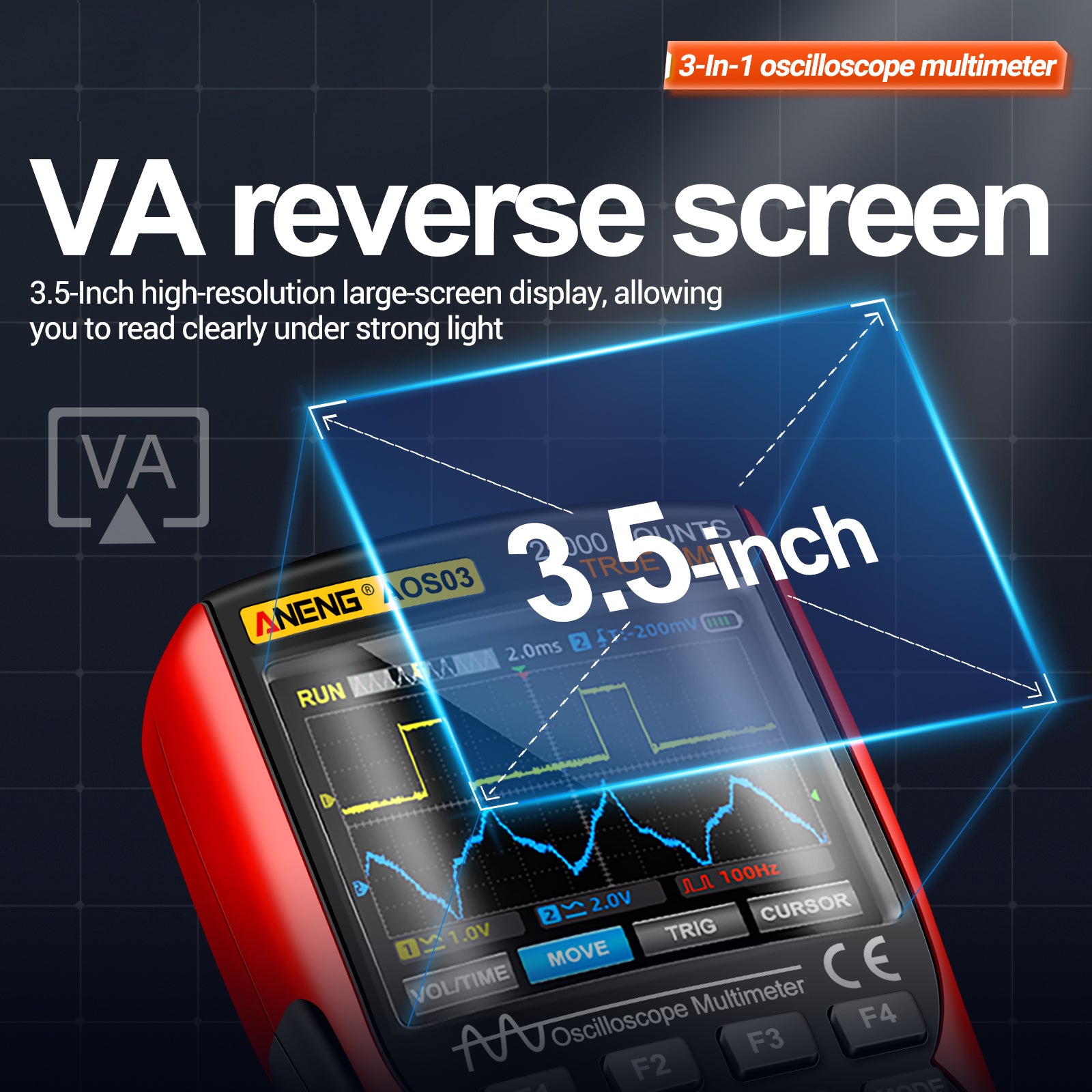

• 3.5-Inch high-resolution large-screen display, allowing you to read clearly under strong light

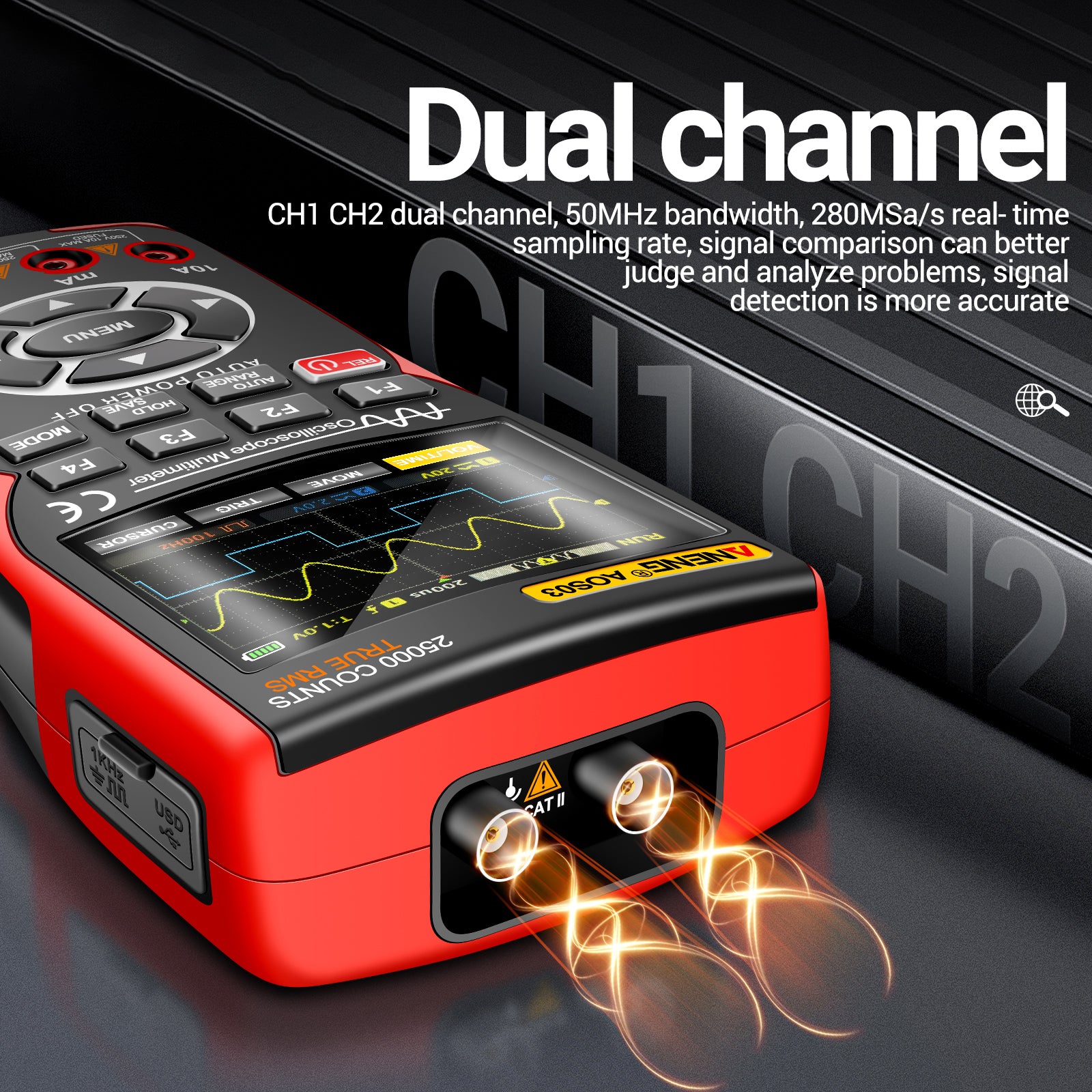

• CH1 CH2 dual channel, 50MHz bandwidth, 280MSa/s real-time sampling rate, signal comparison can better judge and analyze problems, signal detection is more accurate

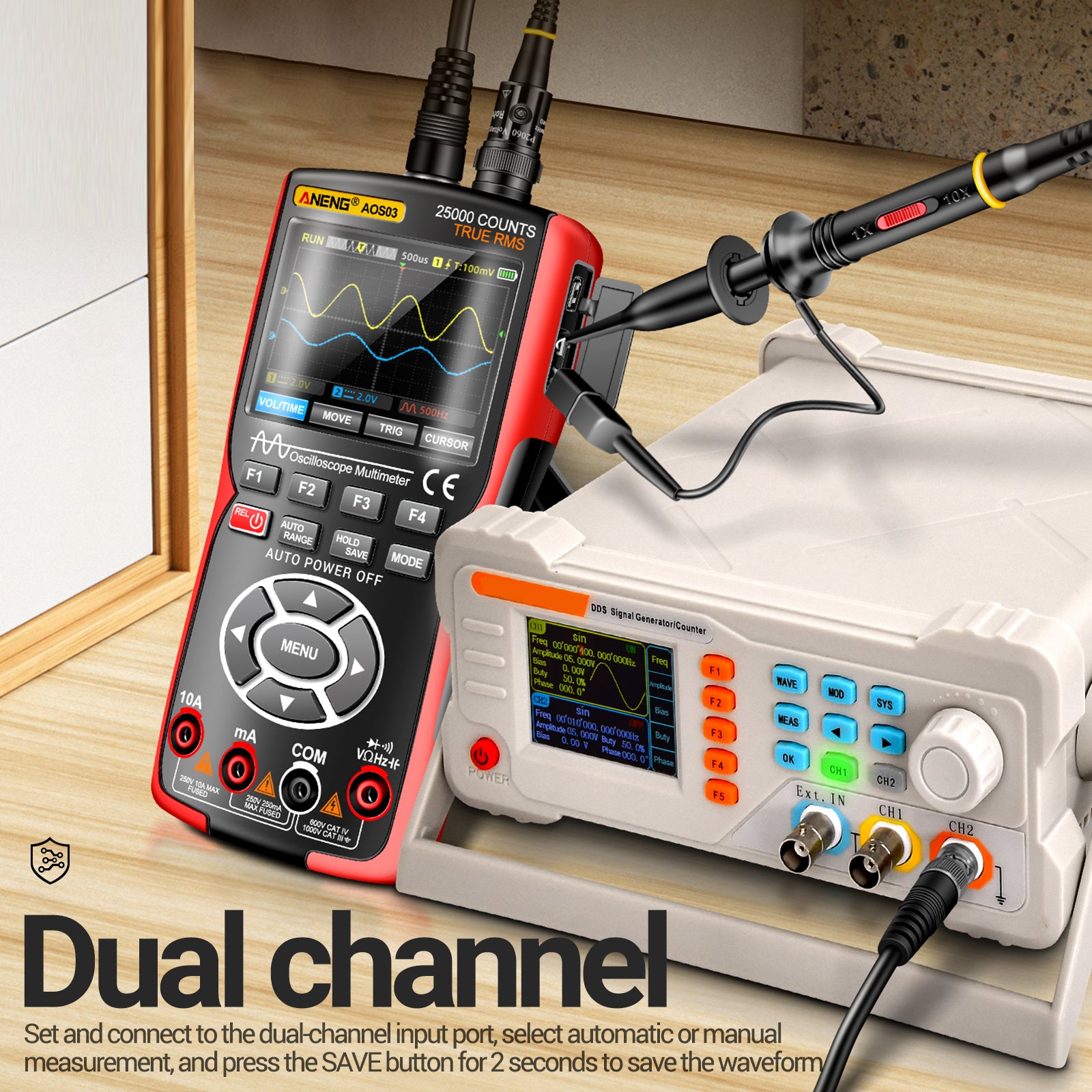

• Set and connect to the dual-channel input port, select automatic or manual measurement, and press the SAVE button for 2 seconds to save the waveform

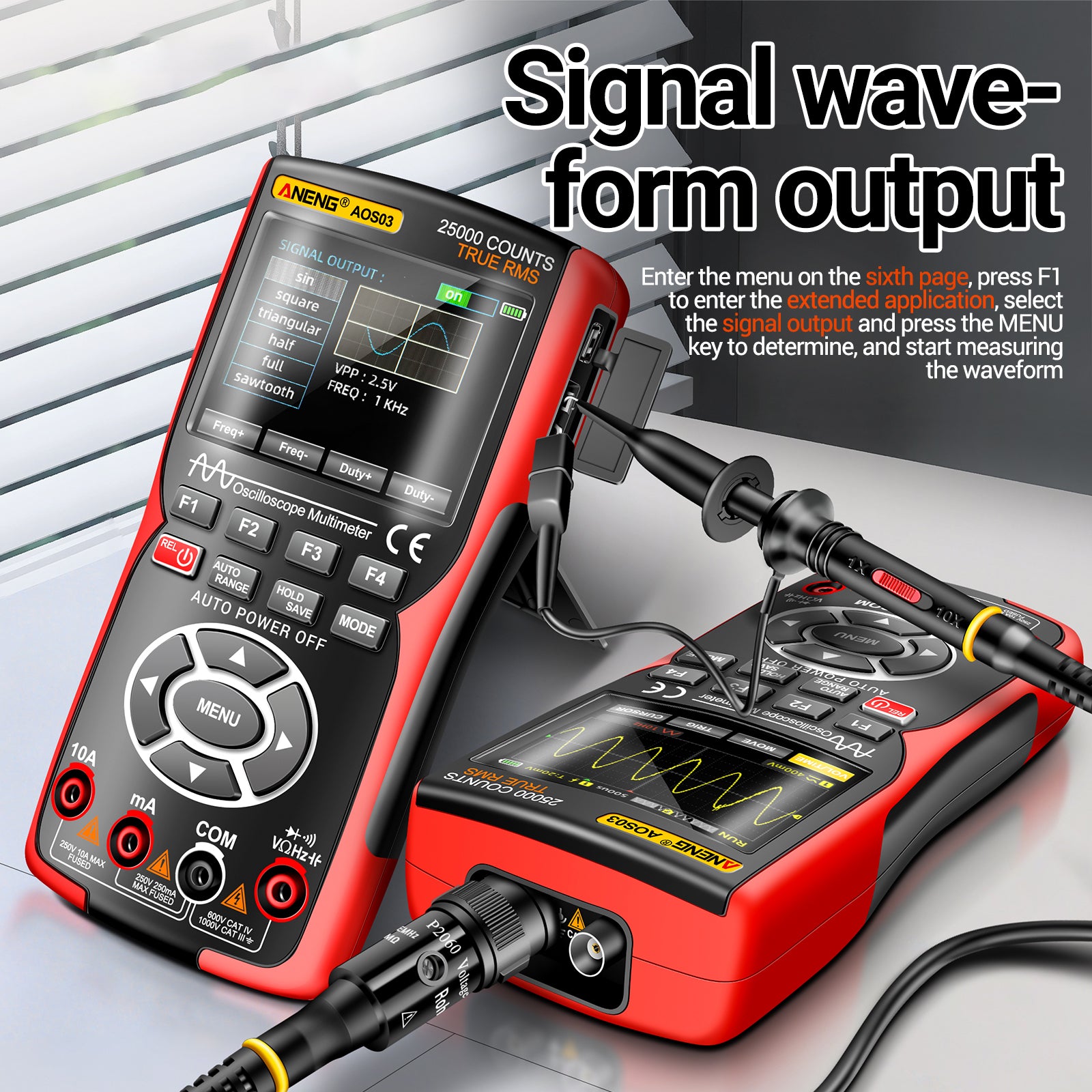

• 7 signal waveforms can be selected: sine wave, square wave, triangular wave, half wave, full wave, sawtooth wave
• Arbitrary waveforms: a variety of waveform measurements to meet your daily needs

Specifications:

• Oscilloscope function:
• Bandwidth: 50MHz dual channel
• Sampling method: real-time sampling
• Real-time sampling rate: 200M/280MSa/s
• Number of channels: dual channels
• Input coupling: DC, AC
• Input impedance: 1M0,@16pf
• Probe attenuation: X1, X10
• Maximum input voltage: X1 gear <150V, X10 gear <300V (DC+AC peak)
• Sampling rate range: 1.5Sa/s-280MSa/s
• Waveform interpolation (sinx): x
• Scan speed range: 10ns/div-20s/div
• Time base accuracy: 20ppm
• Record length: up to 128Kbyte
• Sensitivity: 20mV/div-10V/div
• Displacement range: 4 grids (plus or minus)
• Analog bandwidth: 50MHZ
• Low frequency response: greater than 10HZ
• Rise time: less than 10ns
• DC gain accuracy: ±3%
• Automatic measurement: period/frequency/maximum value/minimum value/root mean square/duty cycle/number of pulses
• Trigger mode: automatic, normal, single
• Trigger edge: rising edge, falling edge
• multimeter:
• AC voltage (V): 0V-750.0V
• DC voltage (V): 0V-1000.0V
• AC and DC voltage (mV): 25.000mV-250.00mV
• AC and DC current (A): 0A-10.000A
• AC current (μA/mA): 25.000mA-250.00mA
• DC current (mA): 25.000mA-250.00mA
• Resistance: 0-250.0MΩ
• Capacitance: 0nF-99.99mF
• Hz: can only measure 100kHz 0Hz-999.9kHz at the AC voltage range
• Diode/Buzzer: √
• Low battery indication: √
• USB charging: √
• Battery model: 3.7V 18650 battery*1 3400 mAh (included)

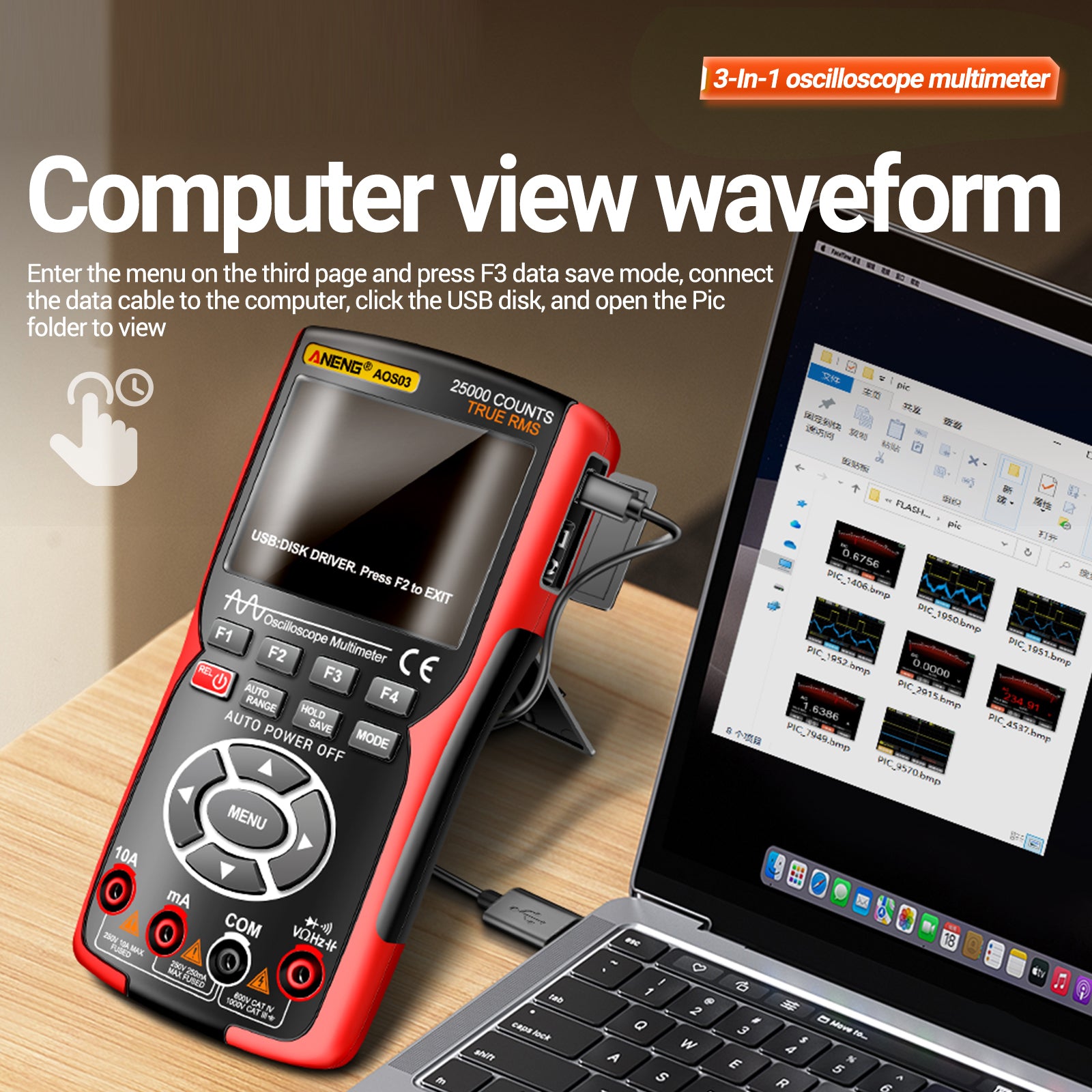

• Data storage/viewing: USB connection to computer
• Sampling rate: 3 times/second
• Screen display: VA reverse display color screen
• Screen brightness is adjustable: 30% 50% 80% 100%
• Data retention: √
• Back support frame: √
• True valid value: √
• Material: ABS/TPE
• Language options: Simplified Chinese/English
• Maximum count: 25000 counts

Package included:

• 1 x Oscilloscope Multimeter

• 2 x Test Lead

• 1 x Set of Oscilloscope Pen Kit

• 1 x Type-C Cable

• 1 x Storage Bag

• 1 x English User Manual
